Summary do iReport não traz os fields

Programação PHP
, ,
#1

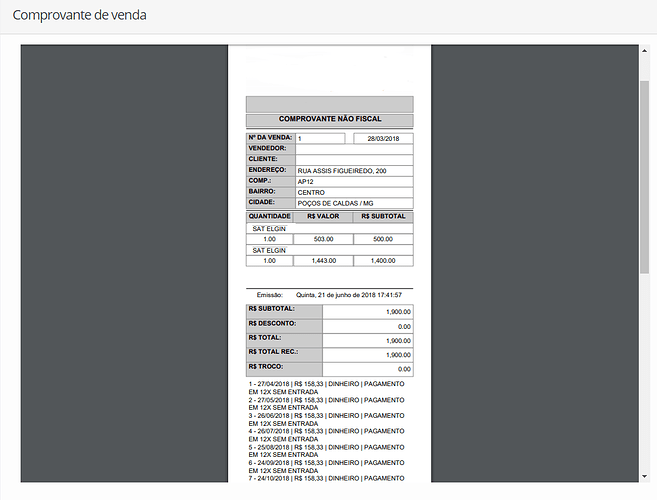

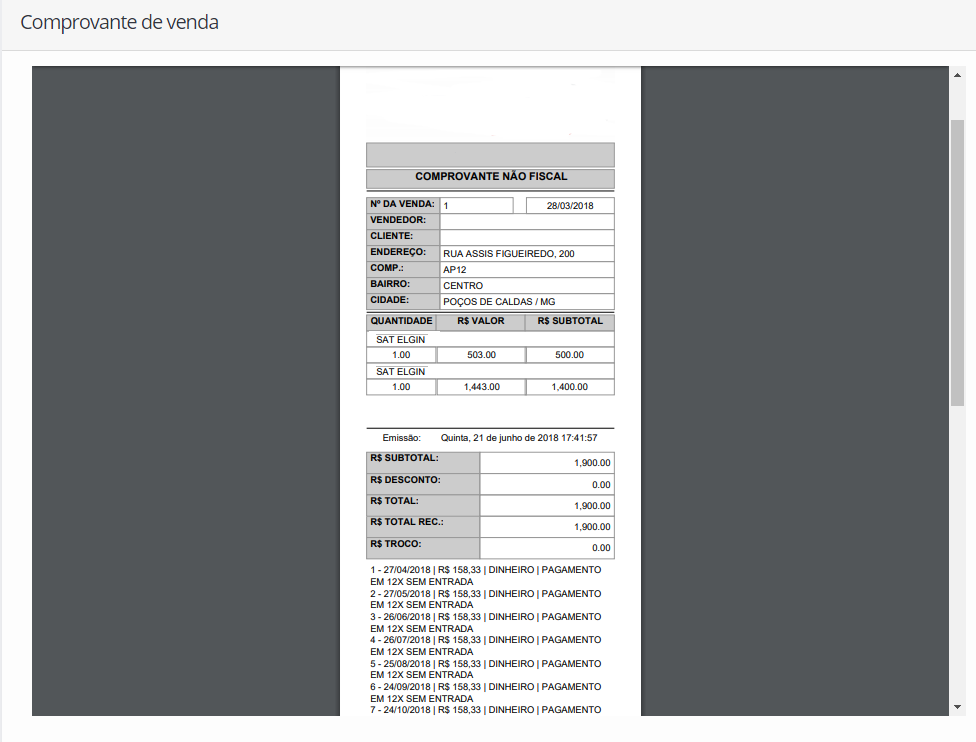

No sistema gerencial que estou trabalhando, gero em PDF um comprovante não fiscal para impressora térmica feito no iReport utilizando a biblioteca PHPJasperXML.

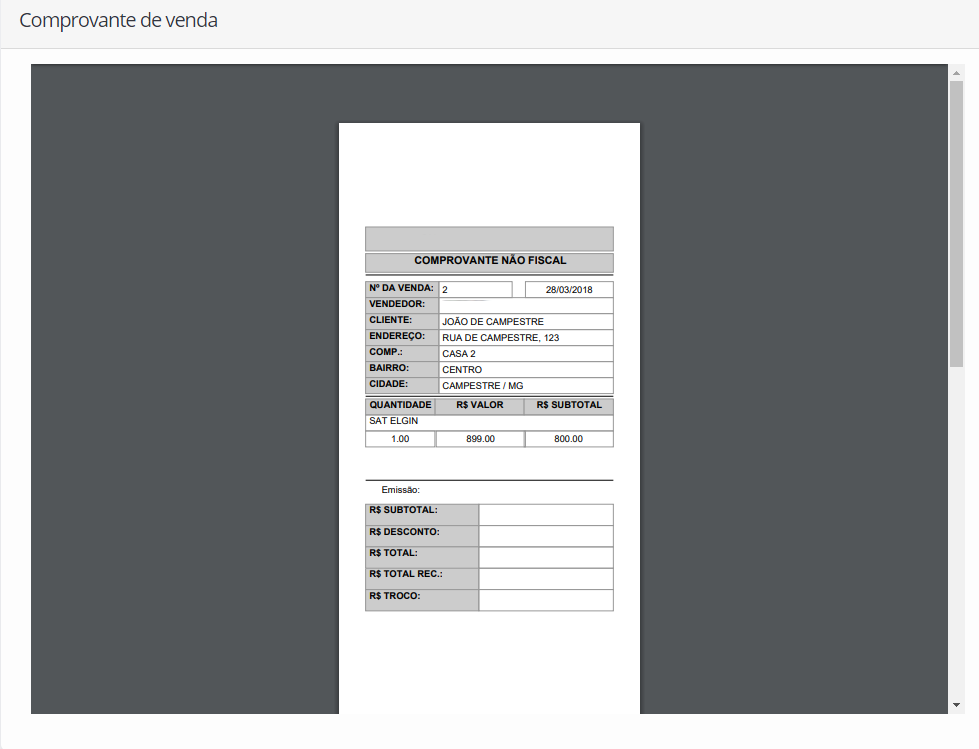

Neste comprovante, quando se tem apenas um produto na aba Detail, não aparecem os fields do Summary. No preview do iReport funciona perfeitamente. E quando se tem dois produtos ou mais, também funciona certinho.

Segue o jrxml do relatório:

<?xml version="1.0" encoding="UTF-8"?>
<jasperReport xmlns="http://jasperreports.sourceforge.net/jasperreports" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://jasperreports.sourceforge.net/jasperreports http://jasperreports.sourceforge.net/xsd/jasperreport.xsd" name="Comprovante de Venda" language="groovy" pageWidth="226" pageHeight="1000" columnWidth="186" leftMargin="20" rightMargin="20" topMargin="20" bottomMargin="20" uuid="7adaf37b-383e-4716-8dba-c60672258fa5">
	<property name="ireport.zoom" value="2.0"/>
	<property name="ireport.x" value="0"/>
	<property name="ireport.y" value="0"/>
	<queryString>
		<![CDATA[SELECT v.nrvenda AS nrvenda, v.data AS data, v.total_prod AS total_prod, v.desconto AS desconto, v.total_venda AS total_venda, v.total_rec AS total_rec, v.troco AS troco, v.endereco_e AS endereco, v.numero_e AS numero, v.complemento_e AS complemento, v.bairro_e AS bairro, v.cidade_e AS cidade, v.uf_e AS uf, i.quantidade AS quantidade, i.valor AS valor, ((i.valor * i.quantidade) - i.desconto) AS subtotal, ve.nomev AS nomev, c.nome AS nome, i.descricao AS descricao, pa.foto1 AS foto1, pa.fantasia AS fantasia, f.hoje AS hoje, f.pagamentos_venda AS pagamentos_venda FROM vendas v, ivendas i, produtos p, vendedor ve, clientes c, parametros pa, filtro_relats f WHERE v.vendas_id = f.consulta AND v.vendas_id = i.venda_id AND v.cliente = c.id AND v.vendedor = ve.id AND i.cod_prod = p.id_produto]]>
	</queryString>
	<field name="nrvenda" class="java.lang.Integer">
		<fieldDescription><![CDATA[]]></fieldDescription>
	</field>
	<field name="data" class="java.sql.Date">
		<fieldDescription><![CDATA[]]></fieldDescription>
	</field>
	<field name="total_prod" class="java.math.BigDecimal">
		<fieldDescription><![CDATA[]]></fieldDescription>
	</field>
	<field name="desconto" class="java.math.BigDecimal">
		<fieldDescription><![CDATA[]]></fieldDescription>
	</field>
	<field name="total_venda" class="java.math.BigDecimal">
		<fieldDescription><![CDATA[]]></fieldDescription>
	</field>
	<field name="total_rec" class="java.math.BigDecimal">
		<fieldDescription><![CDATA[]]></fieldDescription>
	</field>
	<field name="troco" class="java.math.BigDecimal">
		<fieldDescription><![CDATA[]]></fieldDescription>
	</field>
	<field name="endereco" class="java.lang.String"/>
	<field name="numero" class="java.lang.Integer"/>
	<field name="complemento" class="java.lang.String"/>
	<field name="bairro" class="java.lang.String"/>
	<field name="cidade" class="java.lang.String"/>
	<field name="uf" class="java.lang.String"/>
	<field name="quantidade" class="java.math.BigDecimal">
		<fieldDescription><![CDATA[]]></fieldDescription>
	</field>
	<field name="valor" class="java.math.BigDecimal">
		<fieldDescription><![CDATA[]]></fieldDescription>
	</field>
	<field name="subtotal" class="java.math.BigDecimal"/>
	<field name="nomev" class="java.lang.String">
		<fieldDescription><![CDATA[]]></fieldDescription>
	</field>
	<field name="nome" class="java.lang.String">
		<fieldDescription><![CDATA[]]></fieldDescription>
	</field>
	<field name="descricao" class="java.lang.String">
		<fieldDescription><![CDATA[]]></fieldDescription>
	</field>
	<field name="foto1" class="java.lang.String">
		<fieldDescription><![CDATA[]]></fieldDescription>
	</field>
	<field name="fantasia" class="java.lang.String">
		<fieldDescription><![CDATA[]]></fieldDescription>
	</field>
	<field name="hoje" class="java.lang.String">
		<fieldDescription><![CDATA[]]></fieldDescription>
	</field>
	<field name="pagamentos_venda" class="java.lang.String">
		<fieldDescription><![CDATA[]]></fieldDescription>
	</field>
	<title>
		<band height="187">
			<textField pattern="dd/MM/yyyy">
				<reportElement x="120" y="99" width="66" height="12" uuid="25d34e22-9598-4071-a564-30baf0f8d047"/>
				<box>
					<pen lineWidth="0.25" lineColor="#999999"/>
					<topPen lineWidth="0.25" lineColor="#999999"/>
					<leftPen lineWidth="0.25" lineColor="#999999"/>
					<bottomPen lineWidth="0.25" lineColor="#999999"/>
					<rightPen lineWidth="0.25" lineColor="#999999"/>
				</box>
				<textElement textAlignment="Center" verticalAlignment="Middle">
					<font size="7"/>
				</textElement>
				<textFieldExpression><![CDATA[$F{data}]]></textFieldExpression>
			</textField>
			<staticText>
				<reportElement mode="Opaque" x="0" y="99" width="55" height="12" backcolor="#CCCCCC" uuid="8b7388ce-c123-462b-bea7-0f93b3ddfb68"/>
				<box>
					<pen lineWidth="0.25" lineColor="#999999"/>
					<topPen lineWidth="0.25" lineColor="#999999"/>
					<leftPen lineWidth="0.25" lineColor="#999999"/>
					<bottomPen lineWidth="0.25" lineColor="#999999"/>
					<rightPen lineWidth="0.25" lineColor="#999999"/>
				</box>
				<textElement verticalAlignment="Middle">
					<font size="7" isBold="true"/>
					<paragraph leftIndent="5"/>
				</textElement>
				<text><![CDATA[Nº DA VENDA:]]></text>
			</staticText>
			<textField>
				<reportElement x="55" y="99" width="55" height="12" uuid="193a1c6b-9e51-4778-9c01-4bd35f7ba684"/>
				<box>
					<pen lineWidth="0.25" lineColor="#999999"/>
					<topPen lineWidth="0.25" lineColor="#999999"/>
					<leftPen lineWidth="0.25" lineColor="#999999"/>
					<bottomPen lineWidth="0.25" lineColor="#999999"/>
					<rightPen lineWidth="0.25" lineColor="#999999"/>
				</box>
				<textElement verticalAlignment="Middle">
					<font size="7"/>
					<paragraph leftIndent="5"/>
				</textElement>
				<textFieldExpression><![CDATA[$F{nrvenda}]]></textFieldExpression>
			</textField>
			<line>
				<reportElement x="0" y="94" width="186" height="1" uuid="9ab7fd9c-500f-4eb2-bccf-4cdab7d7c03e"/>
			</line>
			<image>
				<reportElement x="0" y="0" width="186" height="56" uuid="ffabf6c5-f0b7-45c8-a208-0b33a2fafc9a"/>
				<imageExpression><![CDATA["../logo/"+$F{foto1}]]></imageExpression>
			</image>
			<staticText>
				<reportElement mode="Opaque" x="0" y="78" width="186" height="14" backcolor="#CCCCCC" uuid="676f6ab7-2ab4-4c6e-b9bb-672c6df618ea"/>
				<box>
					<pen lineWidth="0.25" lineColor="#999999"/>
					<topPen lineWidth="0.25" lineColor="#999999"/>
					<leftPen lineWidth="0.25" lineColor="#999999"/>
					<bottomPen lineWidth="0.25" lineColor="#999999"/>
					<rightPen lineWidth="0.25" lineColor="#999999"/>
				</box>
				<textElement textAlignment="Center" verticalAlignment="Middle">
					<font size="8" isBold="true"/>
					<paragraph leftIndent="5"/>
				</textElement>
				<text><![CDATA[COMPROVANTE NÃO FISCAL]]></text>
			</staticText>
			<line>
				<reportElement x="0" y="185" width="186" height="1" uuid="7a7509a4-2e82-4170-997c-13a6a44b9177"/>
			</line>
			<textField>
				<reportElement mode="Opaque" x="0" y="58" width="186" height="18" backcolor="#CCCCCC" uuid="448ff1c2-ec6a-444b-a30a-ba5e25f1692e"/>
				<box>
					<pen lineWidth="0.25" lineColor="#999999"/>
					<topPen lineWidth="0.25" lineColor="#999999"/>
					<leftPen lineWidth="0.25" lineColor="#999999"/>
					<bottomPen lineWidth="0.25" lineColor="#999999"/>
					<rightPen lineWidth="0.25" lineColor="#999999"/>
				</box>
				<textElement textAlignment="Center" verticalAlignment="Middle">
					<font size="9" isBold="true"/>
					<paragraph leftIndent="5"/>
				</textElement>
				<textFieldExpression><![CDATA[$F{fantasia}]]></textFieldExpression>
			</textField>
			<textField>
				<reportElement x="55" y="111" width="131" height="12" uuid="7bf29b10-6585-45cd-b169-2e870129ca2d"/>
				<box>
					<pen lineWidth="0.25" lineColor="#999999"/>
					<topPen lineWidth="0.25" lineColor="#999999"/>
					<leftPen lineWidth="0.25" lineColor="#999999"/>
					<bottomPen lineWidth="0.25" lineColor="#999999"/>
					<rightPen lineWidth="0.25" lineColor="#999999"/>
				</box>
				<textElement verticalAlignment="Middle">
					<font size="7"/>
					<paragraph leftIndent="5"/>
				</textElement>
				<textFieldExpression><![CDATA[$F{nomev}]]></textFieldExpression>
			</textField>
			<staticText>
				<reportElement mode="Opaque" x="0" y="123" width="55" height="12" backcolor="#CCCCCC" uuid="9b9ba722-7986-4b75-861b-35585fbd440e"/>
				<box>
					<pen lineWidth="0.25" lineColor="#999999"/>
					<topPen lineWidth="0.25" lineColor="#999999"/>
					<leftPen lineWidth="0.25" lineColor="#999999"/>
					<bottomPen lineWidth="0.25" lineColor="#999999"/>
					<rightPen lineWidth="0.25" lineColor="#999999"/>
				</box>
				<textElement verticalAlignment="Middle">
					<font size="7" isBold="true"/>
					<paragraph leftIndent="5"/>
				</textElement>
				<text><![CDATA[CLIENTE:]]></text>
			</staticText>
			<textField>
				<reportElement x="55" y="123" width="131" height="12" uuid="95771752-df56-4745-b53e-09d07bc97efb"/>
				<box>
					<pen lineWidth="0.25" lineColor="#999999"/>
					<topPen lineWidth="0.25" lineColor="#999999"/>
					<leftPen lineWidth="0.25" lineColor="#999999"/>
					<bottomPen lineWidth="0.25" lineColor="#999999"/>
					<rightPen lineWidth="0.25" lineColor="#999999"/>
				</box>
				<textElement verticalAlignment="Middle">
					<font size="7"/>
					<paragraph leftIndent="5"/>
				</textElement>
				<textFieldExpression><![CDATA[$F{nome}]]></textFieldExpression>
			</textField>
			<staticText>
				<reportElement mode="Opaque" x="0" y="111" width="55" height="12" backcolor="#CCCCCC" uuid="f425caaa-484f-45a4-aa51-66f1bb3693cb"/>
				<box>
					<pen lineWidth="0.25" lineColor="#999999"/>
					<topPen lineWidth="0.25" lineColor="#999999"/>
					<leftPen lineWidth="0.25" lineColor="#999999"/>
					<bottomPen lineWidth="0.25" lineColor="#999999"/>
					<rightPen lineWidth="0.25" lineColor="#999999"/>
				</box>
				<textElement verticalAlignment="Middle">
					<font size="7" isBold="true"/>
					<paragraph leftIndent="5"/>
				</textElement>
				<text><![CDATA[VENDEDOR:]]></text>
			</staticText>
			<staticText>
				<reportElement mode="Opaque" x="0" y="135" width="55" height="12" backcolor="#CCCCCC" uuid="cc70adb1-3158-4cb3-92b5-f4c90449bf1c"/>
				<box>
					<pen lineWidth="0.25" lineColor="#999999"/>
					<topPen lineWidth="0.25" lineColor="#999999"/>
					<leftPen lineWidth="0.25" lineColor="#999999"/>
					<bottomPen lineWidth="0.25" lineColor="#999999"/>
					<rightPen lineWidth="0.25" lineColor="#999999"/>
				</box>
				<textElement verticalAlignment="Middle">
					<font size="7" isBold="true"/>
					<paragraph leftIndent="5"/>
				</textElement>
				<text><![CDATA[ENDEREÇO:]]></text>
			</staticText>
			<textField>
				<reportElement x="55" y="135" width="131" height="12" uuid="fd98d079-e937-498d-93c9-512bc4d2f70d"/>
				<box>
					<pen lineWidth="0.25" lineColor="#999999"/>
					<topPen lineWidth="0.25" lineColor="#999999"/>
					<leftPen lineWidth="0.25" lineColor="#999999"/>
					<bottomPen lineWidth="0.25" lineColor="#999999"/>
					<rightPen lineWidth="0.25" lineColor="#999999"/>
				</box>
				<textElement verticalAlignment="Middle">
					<font size="7"/>
					<paragraph leftIndent="5"/>
				</textElement>
				<textFieldExpression><![CDATA[$F{endereco} + ', ' + $F{numero}]]></textFieldExpression>
			</textField>
			<staticText>
				<reportElement mode="Opaque" x="0" y="147" width="55" height="12" backcolor="#CCCCCC" uuid="faef5472-b6b5-4219-965e-cf5c8279d25b"/>
				<box>
					<pen lineWidth="0.25" lineColor="#999999"/>
					<topPen lineWidth="0.25" lineColor="#999999"/>
					<leftPen lineWidth="0.25" lineColor="#999999"/>
					<bottomPen lineWidth="0.25" lineColor="#999999"/>
					<rightPen lineWidth="0.25" lineColor="#999999"/>
				</box>
				<textElement verticalAlignment="Middle">
					<font size="7" isBold="true"/>
					<paragraph leftIndent="5"/>
				</textElement>
				<text><![CDATA[COMP.:]]></text>
			</staticText>
			<textField>
				<reportElement x="55" y="147" width="131" height="12" uuid="1acd940f-3f5f-44c6-8009-8c37fb41fdea"/>
				<box>
					<pen lineWidth="0.25" lineColor="#999999"/>
					<topPen lineWidth="0.25" lineColor="#999999"/>
					<leftPen lineWidth="0.25" lineColor="#999999"/>
					<bottomPen lineWidth="0.25" lineColor="#999999"/>
					<rightPen lineWidth="0.25" lineColor="#999999"/>
				</box>
				<textElement verticalAlignment="Middle">
					<font size="7"/>
					<paragraph leftIndent="5"/>
				</textElement>
				<textFieldExpression><![CDATA[$F{complemento}]]></textFieldExpression>
			</textField>
			<staticText>
				<reportElement mode="Opaque" x="0" y="159" width="55" height="12" backcolor="#CCCCCC" uuid="983a2a9a-df4d-4bc5-a2f8-236b28c128f8"/>
				<box>
					<pen lineWidth="0.25" lineColor="#999999"/>
					<topPen lineWidth="0.25" lineColor="#999999"/>
					<leftPen lineWidth="0.25" lineColor="#999999"/>
					<bottomPen lineWidth="0.25" lineColor="#999999"/>
					<rightPen lineWidth="0.25" lineColor="#999999"/>
				</box>
				<textElement verticalAlignment="Middle">
					<font size="7" isBold="true"/>
					<paragraph leftIndent="5"/>
				</textElement>
				<text><![CDATA[BAIRRO:]]></text>
			</staticText>
			<textField>
				<reportElement x="55" y="159" width="131" height="12" uuid="dcc222e1-a8a8-4a37-af69-692f3e482259"/>
				<box>
					<pen lineWidth="0.25" lineColor="#999999"/>
					<topPen lineWidth="0.25" lineColor="#999999"/>
					<leftPen lineWidth="0.25" lineColor="#999999"/>
					<bottomPen lineWidth="0.25" lineColor="#999999"/>
					<rightPen lineWidth="0.25" lineColor="#999999"/>
				</box>
				<textElement verticalAlignment="Middle">
					<font size="7"/>
					<paragraph leftIndent="5"/>
				</textElement>
				<textFieldExpression><![CDATA[$F{bairro}]]></textFieldExpression>
			</textField>
			<staticText>
				<reportElement mode="Opaque" x="0" y="171" width="55" height="12" backcolor="#CCCCCC" uuid="48652fef-989f-41d7-a84d-d63153eeba24"/>
				<box>
					<pen lineWidth="0.25" lineColor="#999999"/>
					<topPen lineWidth="0.25" lineColor="#999999"/>
					<leftPen lineWidth="0.25" lineColor="#999999"/>
					<bottomPen lineWidth="0.25" lineColor="#999999"/>
					<rightPen lineWidth="0.25" lineColor="#999999"/>
				</box>
				<textElement verticalAlignment="Middle">
					<font size="7" isBold="true"/>
					<paragraph leftIndent="5"/>
				</textElement>
				<text><![CDATA[CIDADE:]]></text>
			</staticText>
			<textField>
				<reportElement x="55" y="171" width="131" height="12" uuid="85297550-2f69-4120-93e9-30ef295af055"/>
				<box>
					<pen lineWidth="0.25" lineColor="#999999"/>
					<topPen lineWidth="0.25" lineColor="#999999"/>
					<leftPen lineWidth="0.25" lineColor="#999999"/>
					<bottomPen lineWidth="0.25" lineColor="#999999"/>
					<rightPen lineWidth="0.25" lineColor="#999999"/>
				</box>
				<textElement verticalAlignment="Middle">
					<font size="7"/>
					<paragraph leftIndent="5"/>
				</textElement>
				<textFieldExpression><![CDATA[$F{cidade} + ' / ' + $F{uf}]]></textFieldExpression>
			</textField>
		</band>
	</title>
	<columnHeader>
		<band height="12">
			<staticText>
				<reportElement mode="Opaque" x="52" y="0" width="67" height="12" backcolor="#CCCCCC" uuid="f48675f7-1e42-45ac-a180-6002eeb777cc"/>
				<box>
					<pen lineWidth="0.25" lineColor="#999999"/>
					<topPen lineWidth="0.25" lineColor="#999999"/>
					<leftPen lineWidth="0.25" lineColor="#999999"/>
					<bottomPen lineWidth="0.25" lineColor="#999999"/>
					<rightPen lineWidth="0.25" lineColor="#999999"/>
				</box>
				<textElement textAlignment="Center" verticalAlignment="Top">
					<font size="7" isBold="true"/>
					<paragraph rightIndent="5"/>
				</textElement>
				<text><![CDATA[R$ VALOR]]></text>
			</staticText>
			<staticText>
				<reportElement mode="Opaque" x="0" y="0" width="52" height="12" backcolor="#CCCCCC" uuid="74c403aa-4d3e-4c21-a274-5c6e7eeb9745"/>
				<box>
					<pen lineWidth="0.25" lineColor="#999999"/>
					<topPen lineWidth="0.25" lineColor="#999999"/>
					<leftPen lineWidth="0.25" lineColor="#999999"/>
					<bottomPen lineWidth="0.25" lineColor="#999999"/>
					<rightPen lineWidth="0.25" lineColor="#999999"/>
				</box>
				<textElement textAlignment="Center" verticalAlignment="Top">
					<font size="7" isBold="true"/>
					<paragraph rightIndent="5"/>
				</textElement>
				<text><![CDATA[QUANTIDADE]]></text>
			</staticText>
			<staticText>
				<reportElement mode="Opaque" x="119" y="0" width="67" height="12" backcolor="#CCCCCC" uuid="3482c3c9-3373-479e-b458-d5327c3b4b09"/>
				<box>
					<pen lineWidth="0.25" lineColor="#999999"/>
					<topPen lineWidth="0.25" lineColor="#999999"/>
					<leftPen lineWidth="0.25" lineColor="#999999"/>
					<bottomPen lineWidth="0.25" lineColor="#999999"/>
					<rightPen lineWidth="0.25" lineColor="#999999"/>
				</box>
				<textElement textAlignment="Center" verticalAlignment="Top">
					<font size="7" isBold="true"/>
					<paragraph rightIndent="5"/>
				</textElement>
				<text><![CDATA[R$ SUBTOTAL]]></text>
			</staticText>
		</band>
	</columnHeader>
	<detail>
		<band height="25" splitType="Stretch">
			<textField isStretchWithOverflow="true">
				<reportElement x="0" y="0" width="186" height="12" uuid="e06c4bc6-e0f7-4e0e-8a7b-ab5ce1fd5e62"/>
				<box>
					<pen lineWidth="0.25" lineColor="#999999"/>
					<topPen lineWidth="0.25" lineColor="#999999"/>
					<leftPen lineWidth="0.25" lineColor="#999999"/>
					<bottomPen lineWidth="0.25" lineColor="#999999"/>
					<rightPen lineWidth="0.25" lineColor="#999999"/>
				</box>
				<textElement verticalAlignment="Middle">
					<font size="7" isBold="false"/>
					<paragraph leftIndent="5"/>
				</textElement>
				<textFieldExpression><![CDATA[$F{descricao}]]></textFieldExpression>
			</textField>
			<textField pattern="#,##0.00;-#,##0.00">
				<reportElement x="53" y="12" width="67" height="12" uuid="1d928a34-4972-4204-9612-9f0e8a6749d3"/>
				<box>
					<pen lineWidth="0.25" lineColor="#999999"/>
					<topPen lineWidth="0.25" lineColor="#999999"/>
					<leftPen lineWidth="0.25" lineColor="#999999"/>
					<bottomPen lineWidth="0.25" lineColor="#999999"/>
					<rightPen lineWidth="0.25" lineColor="#999999"/>
				</box>
				<textElement textAlignment="Center" verticalAlignment="Middle">
					<font size="7"/>
					<paragraph rightIndent="5"/>
				</textElement>
				<textFieldExpression><![CDATA[$F{valor}]]></textFieldExpression>
			</textField>
			<textField pattern="#,##0.00;-#,##0.00">
				<reportElement x="0" y="12" width="52" height="12" uuid="f6d30d04-d0fe-4dd3-a675-377ff6d2b473"/>
				<box>
					<pen lineWidth="0.25" lineColor="#999999"/>
					<topPen lineWidth="0.25" lineColor="#999999"/>
					<leftPen lineWidth="0.25" lineColor="#999999"/>
					<bottomPen lineWidth="0.25" lineColor="#999999"/>
					<rightPen lineWidth="0.25" lineColor="#999999"/>
				</box>
				<textElement textAlignment="Center" verticalAlignment="Middle">
					<font size="7"/>
					<paragraph rightIndent="5"/>
				</textElement>
				<textFieldExpression><![CDATA[$F{quantidade}]]></textFieldExpression>
			</textField>
			<textField pattern="#,##0.00;-#,##0.00">
				<reportElement x="119" y="12" width="67" height="12" uuid="0603e3b7-801d-49af-9a06-5d33023c5277"/>
				<box>
					<pen lineWidth="0.25" lineColor="#999999"/>
					<topPen lineWidth="0.25" lineColor="#999999"/>
					<leftPen lineWidth="0.25" lineColor="#999999"/>
					<bottomPen lineWidth="0.25" lineColor="#999999"/>
					<rightPen lineWidth="0.25" lineColor="#999999"/>
				</box>
				<textElement textAlignment="Center" verticalAlignment="Middle">
					<font size="7"/>
					<paragraph rightIndent="5"/>
				</textElement>
				<textFieldExpression><![CDATA[$F{subtotal}]]></textFieldExpression>
			</textField>
		</band>
	</detail>
	<summary>
		<band height="203">
			<staticText>
				<reportElement mode="Opaque" x="0" y="82" width="85" height="16" backcolor="#CCCCCC" uuid="6b173bab-525a-4da5-a564-723a8cbb1fbc"/>
				<box>
					<pen lineWidth="0.25" lineColor="#999999"/>
					<topPen lineWidth="0.25" lineColor="#999999"/>
					<leftPen lineWidth="0.25" lineColor="#999999"/>
					<bottomPen lineWidth="0.25" lineColor="#999999"/>
					<rightPen lineWidth="0.25" lineColor="#999999"/>
				</box>
				<textElement verticalAlignment="Middle">
					<font size="7" isBold="true"/>
					<paragraph leftIndent="5"/>
				</textElement>
				<text><![CDATA[R$ TROCO:]]></text>
			</staticText>
			<staticText>
				<reportElement x="0" y="3" width="53" height="12" uuid="c99a6844-ca28-47c7-a022-80d2717bf547"/>
				<textElement textAlignment="Center" verticalAlignment="Bottom">
					<font size="7"/>
					<paragraph leftIndent="5"/>
				</textElement>
				<text><![CDATA[Emissão:]]></text>
			</staticText>
			<staticText>
				<reportElement mode="Opaque" x="0" y="66" width="85" height="16" backcolor="#CCCCCC" uuid="d0b8947e-8183-4a55-8b6d-f238bdac0404"/>
				<box>
					<pen lineWidth="0.25" lineColor="#999999"/>
					<topPen lineWidth="0.25" lineColor="#999999"/>
					<leftPen lineWidth="0.25" lineColor="#999999"/>
					<bottomPen lineWidth="0.25" lineColor="#999999"/>
					<rightPen lineWidth="0.25" lineColor="#999999"/>
				</box>
				<textElement verticalAlignment="Middle">
					<font size="7" isBold="true"/>
					<paragraph leftIndent="5"/>
				</textElement>
				<text><![CDATA[R$ TOTAL REC.:]]></text>
			</staticText>
			<textField pattern="#,##0.00;-#,##0.00">
				<reportElement isPrintRepeatedValues="false" x="85" y="82" width="101" height="16" uuid="a15e9cba-0f96-42be-8071-dbd7afecf73a"/>
				<box>
					<pen lineWidth="0.25" lineColor="#999999"/>
					<topPen lineWidth="0.25" lineColor="#999999"/>
					<leftPen lineWidth="0.25" lineColor="#999999"/>
					<bottomPen lineWidth="0.25" lineColor="#999999"/>
					<rightPen lineWidth="0.25" lineColor="#999999"/>
				</box>
				<textElement textAlignment="Right" verticalAlignment="Middle">
					<font size="7"/>
					<paragraph rightIndent="5"/>
				</textElement>
				<textFieldExpression><![CDATA[$F{troco}]]></textFieldExpression>
			</textField>
			<textField pattern="#,##0.00;-#,##0.00">
				<reportElement isPrintRepeatedValues="false" x="85" y="34" width="101" height="16" uuid="47411e66-b385-427c-825c-3be4e4abe45e"/>
				<box>
					<pen lineWidth="0.25" lineColor="#999999"/>
					<topPen lineWidth="0.25" lineColor="#999999"/>
					<leftPen lineWidth="0.25" lineColor="#999999"/>
					<bottomPen lineWidth="0.25" lineColor="#999999"/>
					<rightPen lineWidth="0.25" lineColor="#999999"/>
				</box>
				<textElement textAlignment="Right" verticalAlignment="Middle">
					<font size="7"/>
					<paragraph rightIndent="5"/>
				</textElement>
				<textFieldExpression><![CDATA[$F{desconto}]]></textFieldExpression>
			</textField>
			<staticText>
				<reportElement mode="Opaque" x="0" y="34" width="85" height="16" backcolor="#CCCCCC" uuid="05f791f7-9e38-4ee2-b7db-8e1ec1d6275f"/>
				<box>
					<pen lineWidth="0.25" lineColor="#999999"/>
					<topPen lineWidth="0.25" lineColor="#999999"/>
					<leftPen lineWidth="0.25" lineColor="#999999"/>
					<bottomPen lineWidth="0.25" lineColor="#999999"/>
					<rightPen lineWidth="0.25" lineColor="#999999"/>
				</box>
				<textElement verticalAlignment="Middle">
					<font size="7" isBold="true"/>
					<paragraph leftIndent="5"/>
				</textElement>
				<text><![CDATA[R$ DESCONTO:]]></text>
			</staticText>
			<staticText>
				<reportElement mode="Opaque" x="0" y="18" width="85" height="16" backcolor="#CCCCCC" uuid="3c260ede-9083-41f2-aa35-b2e044fc645a"/>
				<box>
					<pen lineWidth="0.25" lineColor="#999999"/>
					<topPen lineWidth="0.25" lineColor="#999999"/>
					<leftPen lineWidth="0.25" lineColor="#999999"/>
					<bottomPen lineWidth="0.25" lineColor="#999999"/>
					<rightPen lineWidth="0.25" lineColor="#999999"/>
				</box>
				<textElement verticalAlignment="Middle">
					<font size="7" isBold="true"/>
					<paragraph leftIndent="5"/>
				</textElement>
				<text><![CDATA[R$ SUBTOTAL:]]></text>
			</staticText>
			<textField>
				<reportElement x="53" y="3" width="133" height="12" uuid="47291c92-c9d1-40ac-a8d8-82247f26f98b"/>
				<textElement verticalAlignment="Top">
					<font size="7"/>
					<paragraph leftIndent="5"/>
				</textElement>
				<textFieldExpression><![CDATA[$F{hoje}]]></textFieldExpression>
			</textField>
			<textField pattern="#,##0.00;-#,##0.00">
				<reportElement isPrintRepeatedValues="false" x="85" y="66" width="101" height="16" uuid="798cef8b-50c8-437b-af79-95526dbcd315"/>
				<box>
					<pen lineWidth="0.25" lineColor="#999999"/>
					<topPen lineWidth="0.25" lineColor="#999999"/>
					<leftPen lineWidth="0.25" lineColor="#999999"/>
					<bottomPen lineWidth="0.25" lineColor="#999999"/>
					<rightPen lineWidth="0.25" lineColor="#999999"/>
				</box>
				<textElement textAlignment="Right" verticalAlignment="Middle">
					<font size="7"/>
					<paragraph rightIndent="5"/>
				</textElement>
				<textFieldExpression><![CDATA[$F{total_rec}]]></textFieldExpression>
			</textField>
			<textField pattern="#,##0.00;-#,##0.00">
				<reportElement isPrintRepeatedValues="false" mode="Transparent" x="85" y="18" width="101" height="16" uuid="ac0e949b-93f4-4ded-a654-97230a33cb20"/>
				<box>
					<pen lineWidth="0.25" lineColor="#999999"/>
					<topPen lineWidth="0.25" lineColor="#999999"/>
					<leftPen lineWidth="0.25" lineColor="#999999"/>
					<bottomPen lineWidth="0.25" lineColor="#999999"/>
					<rightPen lineWidth="0.25" lineColor="#999999"/>
				</box>
				<textElement textAlignment="Right" verticalAlignment="Middle">
					<font size="7" isBold="false" isItalic="false" isUnderline="false" isStrikeThrough="false"/>
					<paragraph rightIndent="5"/>
				</textElement>
				<textFieldExpression><![CDATA[$F{total_prod}]]></textFieldExpression>
			</textField>
			<textField pattern="#,##0.00;-#,##0.00">
				<reportElement isPrintRepeatedValues="false" x="85" y="50" width="101" height="16" uuid="98a37383-f178-4e9b-817a-66c3ebe183a5"/>
				<box>
					<pen lineWidth="0.25" lineColor="#999999"/>
					<topPen lineWidth="0.25" lineColor="#999999"/>
					<leftPen lineWidth="0.25" lineColor="#999999"/>
					<bottomPen lineWidth="0.25" lineColor="#999999"/>
					<rightPen lineWidth="0.25" lineColor="#999999"/>
				</box>
				<textElement textAlignment="Right" verticalAlignment="Middle">
					<font size="7"/>
					<paragraph rightIndent="5"/>
				</textElement>
				<textFieldExpression><![CDATA[$F{total_venda}]]></textFieldExpression>
			</textField>
			<textField isStretchWithOverflow="true">
				<reportElement positionType="Float" stretchType="RelativeToBandHeight" x="0" y="102" width="186" height="98" isPrintWhenDetailOverflows="true" uuid="85f18504-1690-48ae-a11a-02a6b0ef4489"/>
				<box>
					<pen lineColor="#999999"/>
					<topPen lineColor="#999999"/>
					<leftPen lineColor="#999999"/>
					<bottomPen lineColor="#999999"/>
					<rightPen lineColor="#999999"/>
				</box>
				<textElement markup="none">
					<font size="7" isPdfEmbedded="false"/>
				</textElement>
				<textFieldExpression><![CDATA[$F{pagamentos_venda}]]></textFieldExpression>
			</textField>
			<staticText>
				<reportElement mode="Opaque" x="0" y="50" width="85" height="16" backcolor="#CCCCCC" uuid="1fc6ac4f-3090-4de5-8fd6-7562b4058ecf"/>
				<box>
					<pen lineWidth="0.25" lineColor="#999999"/>
					<topPen lineWidth="0.25" lineColor="#999999"/>
					<leftPen lineWidth="0.25" lineColor="#999999"/>
					<bottomPen lineWidth="0.25" lineColor="#999999"/>
					<rightPen lineWidth="0.25" lineColor="#999999"/>
				</box>
				<textElement verticalAlignment="Middle">
					<font size="7" isBold="true"/>
					<paragraph leftIndent="5"/>
				</textElement>
				<text><![CDATA[R$ TOTAL:]]></text>
			</staticText>
			<line>
				<reportElement x="0" y="0" width="186" height="1" uuid="e3ab1d85-d813-4fe6-ba0d-70c9bf390b79"/>
			</line>
		</band>
	</summary>
</jasperReport>

Comprovante%20n%C3%A3o%20fiscal%20com%20um%20produto
Comprovante não fiscal com um produto.PNG979×749 33 KB

Comprovante%20n%C3%A3o%20fiscal%20com%20dois%20produtos
Comprovante não fiscal com dois produtos.PNG976×742 59.5 KB

É só o Summary que está com problema mesmo (da “emissão” pra baixo), o resto que não está aparecendo realmente foi omitido pois não cabe neste escopo.

#2

Creio que não se deva utilizar fields no summary, pois ele vai pegar o valor do ultimo da lista, se tiver somente hum não aparece mesmo porque este ja foi iterado no detail, sugiro trocar os campos do summary por parametros, ou agrupar pelo numero da venda e calcular este campos dinamicamente no summary.

#3

Obrigado pela resposta.

Ah sim, entendi! Agora que você falou que reparei que nos outros relatórios eu não utilizo o field dentro do summary.

No caso da troca por parâmetros, o procedimento seria eu criar um novo parameter e associar o field a ele, e no lugar da exibição do field, dentro do summary, exibir o parameter? Tentei deste jeito no campo de emissão, mas no lugar do texto, ele apresenta 1

#4

No caso teria que popular o parametro com o valor no backend e utilizalo diretamente, isso se vc imprime apensas uma nota de cada vez, se for imprimir varias notas tem que utilizar a segunda opção.

#5

Imprimo uma de cada vez!

O valor já vem pronto do BD, não é incrementado nem modificado dentro do relatório.

#6

Para esta abordagem que vc utilizou, com uma query interna, para mostrar os totalizadores que estão no summary vai ter que utilizar variables, quando vc arrasta um field para o summary ele ja mostra as opcões e criar uma variable automaticamente como o tipo de totalizador escolhido, e para mostrar os outros campos abaixo do detail vc vai ter que usar agrupamentos.

#7

Já tentei com variable também e o resultado é o mesmo, vem tudo em branco!
