Relatório iReport não traz os campos na aba Summary

Programação PHP
, , ,
#1

No sistema gerencial que estou trabalhando, gero em PDF um comprovante não fiscal para impressora térmica, feito no iReport, utilizando a biblioteca PHPJasperXML. Neste comprovante, quando se tem apenas um produto (uma linha) na aba Detail, os campos do Summary vem em branco. Quando se tem dois produtos ou mais (duas linhas ou mais) na aba Detail, os campos são preenchidos normalmente. No preview do programa iReport funciona perfeitamente, com um ou dois produtos.

Segue o jrxml do relatório (somente o detail e o summary):

<detail>
	<band height="25" splitType="Stretch">
		<textField isStretchWithOverflow="true">
			<reportElement x="0" y="0" width="186" height="12" uuid="e06c4bc6-e0f7-4e0e-8a7b-ab5ce1fd5e62"/>
			<box>
				<pen lineWidth="0.25" lineColor="#999999"/>
				<topPen lineWidth="0.25" lineColor="#999999"/>
				<leftPen lineWidth="0.25" lineColor="#999999"/>
				<bottomPen lineWidth="0.25" lineColor="#999999"/>
				<rightPen lineWidth="0.25" lineColor="#999999"/>
			</box>
			<textElement verticalAlignment="Middle">
				<font size="7" isBold="false"/>
				<paragraph leftIndent="5"/>
			</textElement>
			<textFieldExpression><![CDATA[$F{descricao}]]></textFieldExpression>
		</textField>
		<textField pattern="#,##0.00;-#,##0.00">
			<reportElement x="52" y="12" width="67" height="12" uuid="1d928a34-4972-4204-9612-9f0e8a6749d3"/>
			<box>
				<pen lineWidth="0.25" lineColor="#999999"/>
				<topPen lineWidth="0.25" lineColor="#999999"/>
				<leftPen lineWidth="0.25" lineColor="#999999"/>
				<bottomPen lineWidth="0.25" lineColor="#999999"/>
				<rightPen lineWidth="0.25" lineColor="#999999"/>
			</box>
			<textElement textAlignment="Center" verticalAlignment="Middle">
				<font size="7"/>
				<paragraph rightIndent="5"/>
			</textElement>
			<textFieldExpression><![CDATA[$F{valor}]]></textFieldExpression>
		</textField>
		<textField pattern="#,##0.00;-#,##0.00">
			<reportElement x="0" y="12" width="52" height="12" uuid="f6d30d04-d0fe-4dd3-a675-377ff6d2b473"/>
			<box>
				<pen lineWidth="0.25" lineColor="#999999"/>
				<topPen lineWidth="0.25" lineColor="#999999"/>
				<leftPen lineWidth="0.25" lineColor="#999999"/>
				<bottomPen lineWidth="0.25" lineColor="#999999"/>
				<rightPen lineWidth="0.25" lineColor="#999999"/>
			</box>
			<textElement textAlignment="Center" verticalAlignment="Middle">
				<font size="7"/>
				<paragraph rightIndent="5"/>
			</textElement>
			<textFieldExpression><![CDATA[$F{quantidade}]]></textFieldExpression>
		</textField>
		<textField pattern="#,##0.00;-#,##0.00">
			<reportElement x="119" y="12" width="67" height="12" uuid="0603e3b7-801d-49af-9a06-5d33023c5277"/>
			<box>
				<pen lineWidth="0.25" lineColor="#999999"/>
				<topPen lineWidth="0.25" lineColor="#999999"/>
				<leftPen lineWidth="0.25" lineColor="#999999"/>
				<bottomPen lineWidth="0.25" lineColor="#999999"/>
				<rightPen lineWidth="0.25" lineColor="#999999"/>
			</box>
			<textElement textAlignment="Center" verticalAlignment="Middle">
				<font size="7"/>
				<paragraph rightIndent="5"/>
			</textElement>
			<textFieldExpression><![CDATA[$F{subtotal}]]></textFieldExpression>
		</textField>
	</band>
</detail>
<summary>
	<band height="203">
		<staticText>
			<reportElement mode="Opaque" x="0" y="82" width="85" height="16" backcolor="#CCCCCC" uuid="6b173bab-525a-4da5-a564-723a8cbb1fbc"/>
			<box>
				<pen lineWidth="0.25" lineColor="#999999"/>
				<topPen lineWidth="0.25" lineColor="#999999"/>
				<leftPen lineWidth="0.25" lineColor="#999999"/>
				<bottomPen lineWidth="0.25" lineColor="#999999"/>
				<rightPen lineWidth="0.25" lineColor="#999999"/>
			</box>
			<textElement verticalAlignment="Middle">
				<font size="7" isBold="true"/>
				<paragraph leftIndent="5"/>
			</textElement>
			<text><![CDATA[R$ TROCO:]]></text>
		</staticText>
		<staticText>
			<reportElement x="0" y="3" width="53" height="12" uuid="c99a6844-ca28-47c7-a022-80d2717bf547"/>
			<textElement textAlignment="Center" verticalAlignment="Bottom">
				<font size="7"/>
				<paragraph leftIndent="5"/>
			</textElement>
			<text><![CDATA[Emissão:]]></text>
		</staticText>
		<staticText>
			<reportElement mode="Opaque" x="0" y="66" width="85" height="16" backcolor="#CCCCCC" uuid="d0b8947e-8183-4a55-8b6d-f238bdac0404"/>
			<box>
				<pen lineWidth="0.25" lineColor="#999999"/>
				<topPen lineWidth="0.25" lineColor="#999999"/>
				<leftPen lineWidth="0.25" lineColor="#999999"/>
				<bottomPen lineWidth="0.25" lineColor="#999999"/>
				<rightPen lineWidth="0.25" lineColor="#999999"/>
			</box>
			<textElement verticalAlignment="Middle">
				<font size="7" isBold="true"/>
				<paragraph leftIndent="5"/>
			</textElement>
			<text><![CDATA[R$ TOTAL REC.:]]></text>
		</staticText>
		<textField pattern="#,##0.00;-#,##0.00">
			<reportElement isPrintRepeatedValues="false" x="85" y="82" width="101" height="16" uuid="a15e9cba-0f96-42be-8071-dbd7afecf73a"/>
			<box>
				<pen lineWidth="0.25" lineColor="#999999"/>
				<topPen lineWidth="0.25" lineColor="#999999"/>
				<leftPen lineWidth="0.25" lineColor="#999999"/>
				<bottomPen lineWidth="0.25" lineColor="#999999"/>
				<rightPen lineWidth="0.25" lineColor="#999999"/>
			</box>
			<textElement textAlignment="Right" verticalAlignment="Middle">
				<font size="7"/>
				<paragraph rightIndent="5"/>
			</textElement>
			<textFieldExpression><![CDATA[$F{troco}]]></textFieldExpression>
		</textField>
		<textField pattern="#,##0.00;-#,##0.00">
			<reportElement isPrintRepeatedValues="false" x="85" y="34" width="101" height="16" uuid="47411e66-b385-427c-825c-3be4e4abe45e"/>
			<box>
				<pen lineWidth="0.25" lineColor="#999999"/>
				<topPen lineWidth="0.25" lineColor="#999999"/>
				<leftPen lineWidth="0.25" lineColor="#999999"/>
				<bottomPen lineWidth="0.25" lineColor="#999999"/>
				<rightPen lineWidth="0.25" lineColor="#999999"/>
			</box>
			<textElement textAlignment="Right" verticalAlignment="Middle">
				<font size="7"/>
				<paragraph rightIndent="5"/>
			</textElement>
			<textFieldExpression><![CDATA[$F{desconto}]]></textFieldExpression>
		</textField>
		<staticText>
			<reportElement mode="Opaque" x="0" y="34" width="85" height="16" backcolor="#CCCCCC" uuid="05f791f7-9e38-4ee2-b7db-8e1ec1d6275f"/>
			<box>
				<pen lineWidth="0.25" lineColor="#999999"/>
				<topPen lineWidth="0.25" lineColor="#999999"/>
				<leftPen lineWidth="0.25" lineColor="#999999"/>
				<bottomPen lineWidth="0.25" lineColor="#999999"/>
				<rightPen lineWidth="0.25" lineColor="#999999"/>
			</box>
			<textElement verticalAlignment="Middle">
				<font size="7" isBold="true"/>
				<paragraph leftIndent="5"/>
			</textElement>
			<text><![CDATA[R$ DESCONTO:]]></text>
		</staticText>
		<staticText>
			<reportElement mode="Opaque" x="0" y="18" width="85" height="16" backcolor="#CCCCCC" uuid="3c260ede-9083-41f2-aa35-b2e044fc645a"/>
			<box>
				<pen lineWidth="0.25" lineColor="#999999"/>
				<topPen lineWidth="0.25" lineColor="#999999"/>
				<leftPen lineWidth="0.25" lineColor="#999999"/>
				<bottomPen lineWidth="0.25" lineColor="#999999"/>
				<rightPen lineWidth="0.25" lineColor="#999999"/>
			</box>
			<textElement verticalAlignment="Middle">
				<font size="7" isBold="true"/>
				<paragraph leftIndent="5"/>
			</textElement>
			<text><![CDATA[R$ SUBTOTAL:]]></text>
		</staticText>
		<textField>
			<reportElement x="52" y="3" width="134" height="12" uuid="47291c92-c9d1-40ac-a8d8-82247f26f98b"/>
			<textElement verticalAlignment="Top">
				<font size="7"/>
				<paragraph leftIndent="5"/>
			</textElement>
			<textFieldExpression><![CDATA[$F{hoje}]]></textFieldExpression>
		</textField>
		<textField pattern="#,##0.00;-#,##0.00">
			<reportElement isPrintRepeatedValues="false" x="85" y="66" width="101" height="16" uuid="798cef8b-50c8-437b-af79-95526dbcd315"/>
			<box>
				<pen lineWidth="0.25" lineColor="#999999"/>
				<topPen lineWidth="0.25" lineColor="#999999"/>
				<leftPen lineWidth="0.25" lineColor="#999999"/>
				<bottomPen lineWidth="0.25" lineColor="#999999"/>
				<rightPen lineWidth="0.25" lineColor="#999999"/>
			</box>
			<textElement textAlignment="Right" verticalAlignment="Middle">
				<font size="7"/>
				<paragraph rightIndent="5"/>
			</textElement>
			<textFieldExpression><![CDATA[$F{total_rec}]]></textFieldExpression>
		</textField>
		<textField pattern="#,##0.00;-#,##0.00">
			<reportElement isPrintRepeatedValues="false" mode="Transparent" x="85" y="18" width="101" height="16" uuid="ac0e949b-93f4-4ded-a654-97230a33cb20"/>
			<box>
				<pen lineWidth="0.25" lineColor="#999999"/>
				<topPen lineWidth="0.25" lineColor="#999999"/>
				<leftPen lineWidth="0.25" lineColor="#999999"/>
				<bottomPen lineWidth="0.25" lineColor="#999999"/>
				<rightPen lineWidth="0.25" lineColor="#999999"/>
			</box>
			<textElement textAlignment="Right" verticalAlignment="Middle">
				<font size="7" isBold="false" isItalic="false" isUnderline="false" isStrikeThrough="false"/>
				<paragraph rightIndent="5"/>
			</textElement>
			<textFieldExpression><![CDATA[$F{total_prod}]]></textFieldExpression>
		</textField>
		<textField pattern="#,##0.00;-#,##0.00">
			<reportElement isPrintRepeatedValues="false" x="85" y="50" width="101" height="16" uuid="98a37383-f178-4e9b-817a-66c3ebe183a5"/>
			<box>
				<pen lineWidth="0.25" lineColor="#999999"/>
				<topPen lineWidth="0.25" lineColor="#999999"/>
				<leftPen lineWidth="0.25" lineColor="#999999"/>
				<bottomPen lineWidth="0.25" lineColor="#999999"/>
				<rightPen lineWidth="0.25" lineColor="#999999"/>
			</box>
			<textElement textAlignment="Right" verticalAlignment="Middle">
				<font size="7"/>
				<paragraph rightIndent="5"/>
			</textElement>
			<textFieldExpression><![CDATA[$F{total_venda}]]></textFieldExpression>
		</textField>
		<textField isStretchWithOverflow="true">
			<reportElement positionType="Float" stretchType="RelativeToBandHeight" x="0" y="102" width="186" height="98" isPrintWhenDetailOverflows="true" uuid="85f18504-1690-48ae-a11a-02a6b0ef4489"/>
			<box>
				<pen lineColor="#999999"/>
				<topPen lineColor="#999999"/>
				<leftPen lineColor="#999999"/>
				<bottomPen lineColor="#999999"/>
				<rightPen lineColor="#999999"/>
			</box>
			<textElement markup="none">
				<font size="7" isPdfEmbedded="false"/>
			</textElement>
			<textFieldExpression><![CDATA[$F{pagamentos_venda}]]></textFieldExpression>
		</textField>
		<staticText>
			<reportElement mode="Opaque" x="0" y="50" width="85" height="16" backcolor="#CCCCCC" uuid="1fc6ac4f-3090-4de5-8fd6-7562b4058ecf"/>
			<box>
				<pen lineWidth="0.25" lineColor="#999999"/>
				<topPen lineWidth="0.25" lineColor="#999999"/>
				<leftPen lineWidth="0.25" lineColor="#999999"/>
				<bottomPen lineWidth="0.25" lineColor="#999999"/>
				<rightPen lineWidth="0.25" lineColor="#999999"/>
			</box>
			<textElement verticalAlignment="Middle">
				<font size="7" isBold="true"/>
				<paragraph leftIndent="5"/>
			</textElement>
			<text><![CDATA[R$ TOTAL:]]></text>
		</staticText>
		<line>
			<reportElement x="0" y="0" width="186" height="1" uuid="e3ab1d85-d813-4fe6-ba0d-70c9bf390b79"/>
		</line>
	</band>
</summary>

Veja os resultados em PDF:

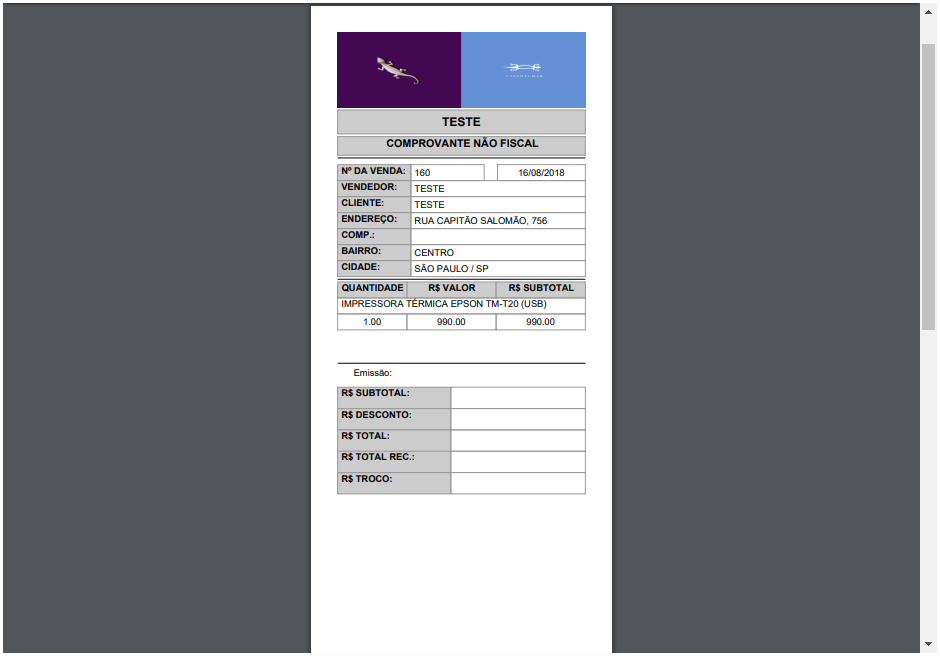

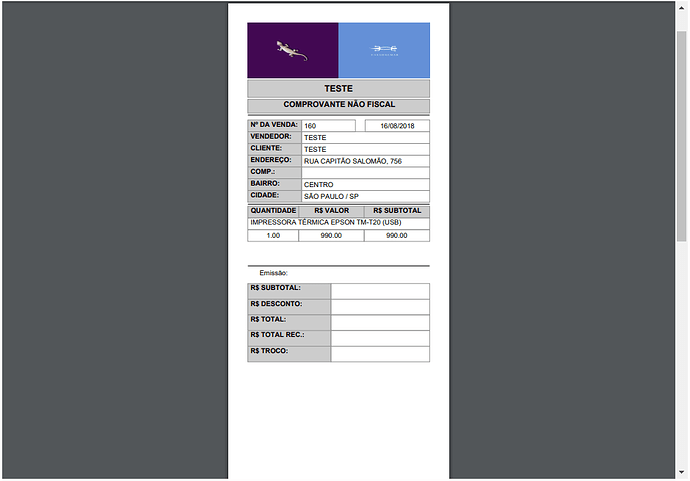

1 - Com um produto:

Comprovante%20n%C3%A3o%20fiscal%20com%20um%20produto
Comprovante não fiscal com um produto.PNG940×656 33.2 KB

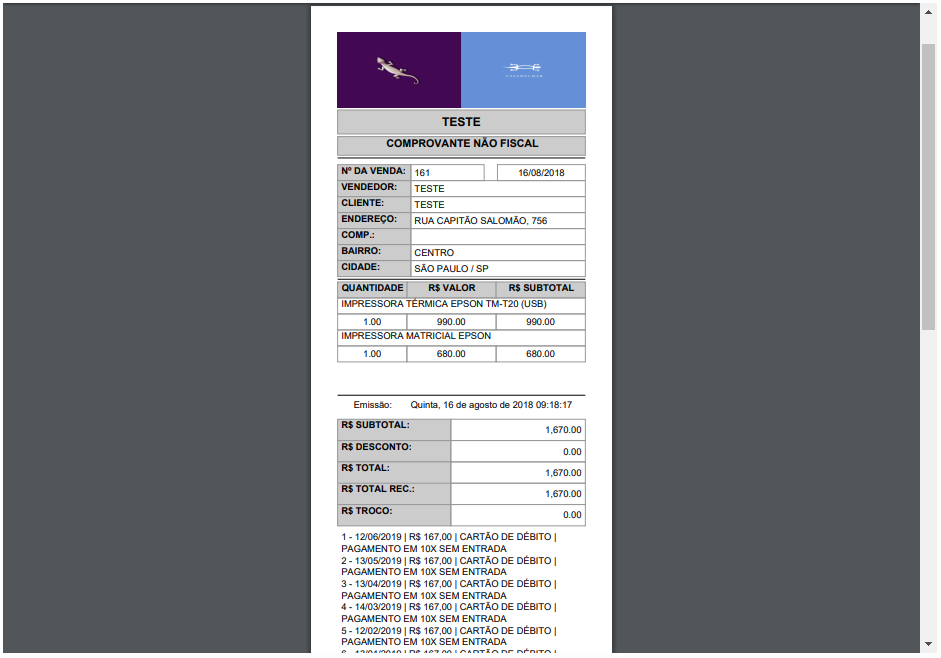

2 - Com dois produtos:
Comprovante%20n%C3%A3o%20fiscal%20com%20dois%20produtos
Comprovante não fiscal com dois produtos.PNG941×658 58.3 KB

Os valores já vem prontos do banco de dados MySQL, nada é alterado ou incrementado dentro do Summary. Já tentei com parameter e variable mas não deu certo.

Alguém tem alguma ideia? Seria um problema no relatório ou alguma configuração de servidor?

Obrigado desde já!

#2

Fala ai gui_nastrini Bom dia,
Cara pelo que me lembre o iReport possui uma área interna onde podemos incluir uma logica para fazer blocos que compõem o relatório obedecerem determinados quesitos para poder aparecerem ou não. Da uma verificada nisso. ta com cara de ser isso.
Abraços
Max

#3

E aí, FacaNaCaveira! Bom dia!

Esse bloco de lógica que vc se refere seria o “Print when expression”? Se for, ele ta vazio…
